Check TV size & weight — or enter your TV model number for an instant AI check

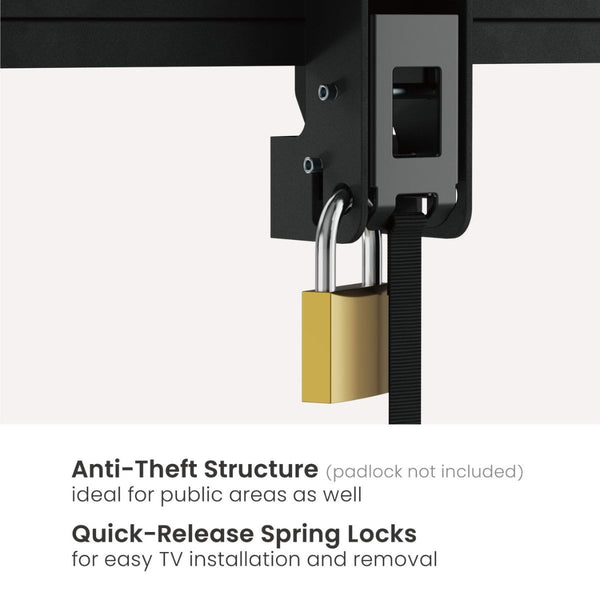

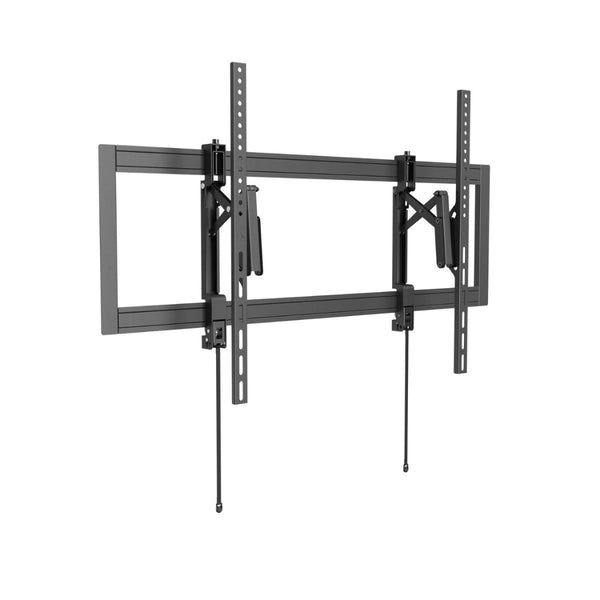

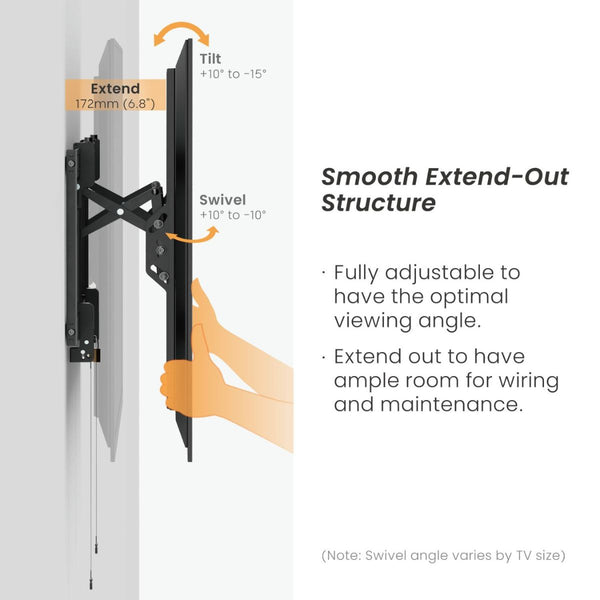

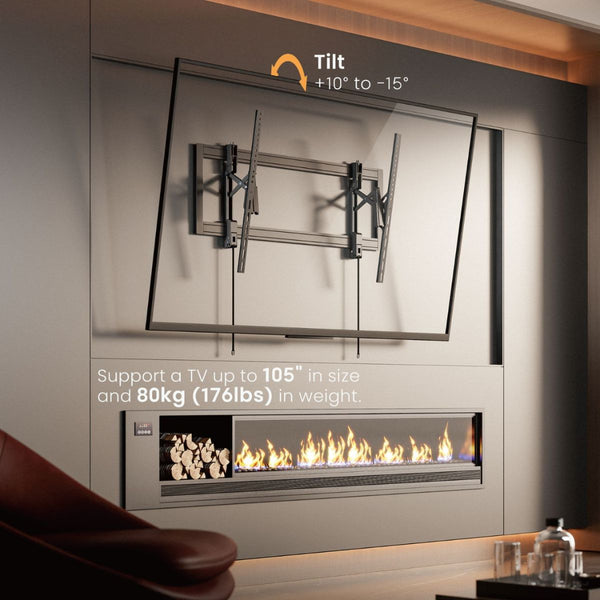

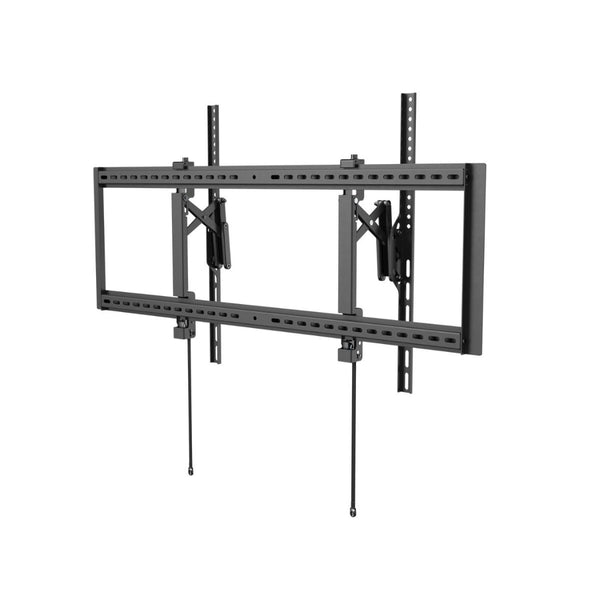

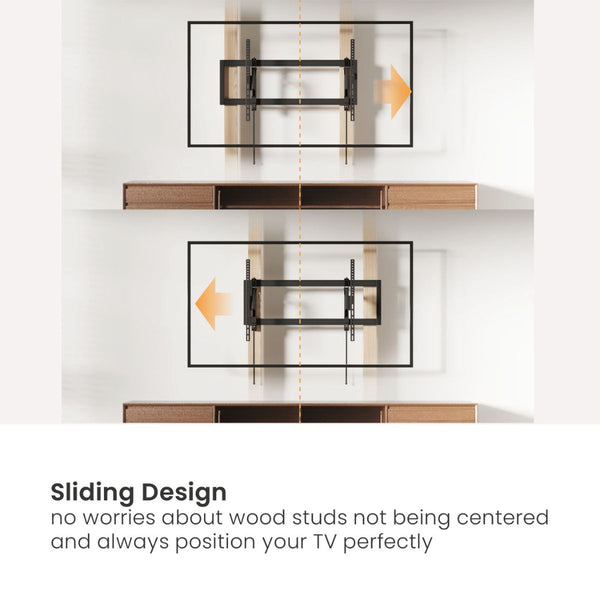

Designed for extra-large TVs, this heavy-duty wall mount supports 55–105 inch flat and curved screens weighing up to 80kg. Its extend-out design makes it easy to bring a large TV forward for convenient access, while the +10° to -15° tilt and ±10° swivel provide flexible viewing angles. A lateral-shift wall plate helps position the screen accurately even when wall studs are off-center. Automatic spring locks, quick-release cords and an anti-theft locking hole add convenience and security, making it suitable for homes, commercial spaces and public installations.
| Specification | Details |
|---|---|
| Product Type | Heavy-Duty Extend-Out Tilt TV Wall Mount |
| Compatible TV Size | 55–105 Inches |
| TV Type | Flat & Curved TVs |
| Maximum TV Weight | 80 kg / 176 lbs |
| Mounting Pattern | VESA & Universal |
| VESA Compatibility | 200×200 to 1000×600 mm |
| Maximum Mounting Hole | 1000 × 602 mm |
| Tilt Range | +10° to -15° |
| Swivel Range | +10° to -10° |
| Profile / Extension | 53–172 mm |

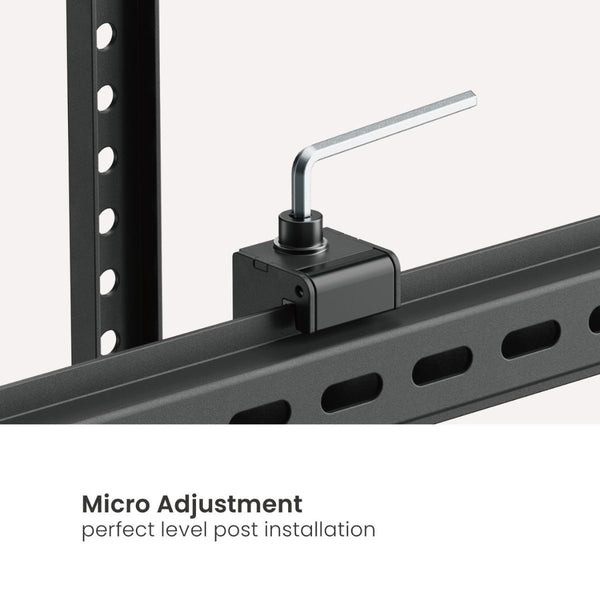

| Screen Level Adjustment | 30 mm |
| Material | Steel & Plastic |
| Finish | Powder Coated |
| Color | Fine Texture Black |
| Anti-Theft | Yes |
| Wall Compatibility | Solid Wall & Dual Stud |
| Supported Stud Spacing | 406 / 450 / 600 mm |
| Wall Plate | Fixed Wall Plate with Lateral Shift |
| Panel Type | Detachable Panel |
| Locking System | Automatic Spring Locks with Quick-Release Cords |
| Bubble Level | Hook-on Bubble Level Included |
| Strength Testing | 4× Approved |
| Certification | UL |

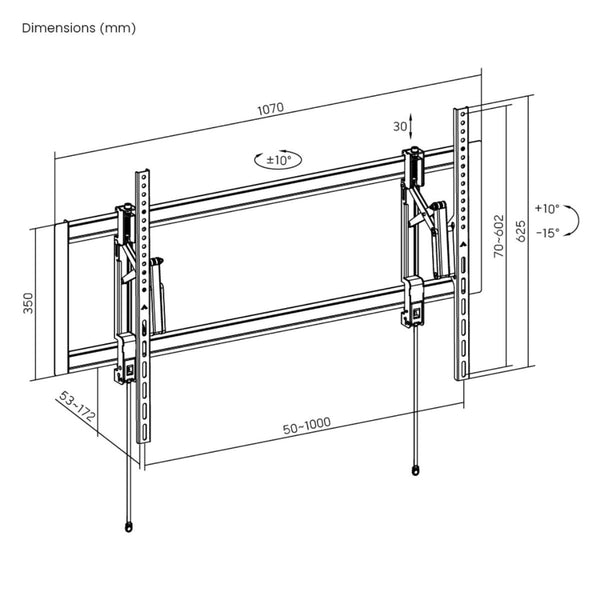

| Dimensions (L × B × W) | 17.2 × 107 × 62.5 cm |
Warranty: 1 Year On Manufacturing defects. Not Covered: Burnt, Broken & Physically Damaged Units post usage.
