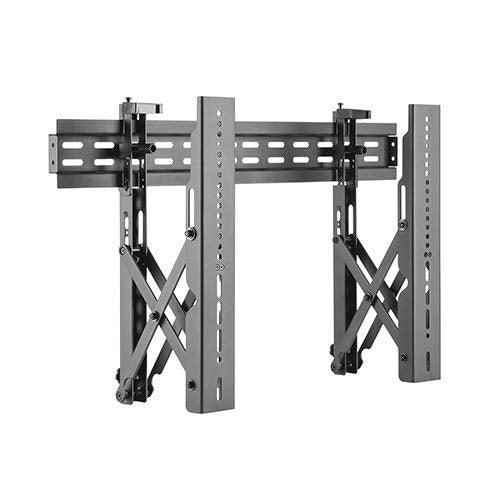

VW02-46T Pop Out Video Wall Mount Bracket for 37 to 70 Inch LED, LCD Flat Panel TVs

LVW02-46T is a professional video wall mount designed to offer the ultimate in versatility and universal compatibility with load capacity of 45kg/99lbs and max. VESA 600x400 hole pattern. This mount extends out 202mm from wall by a press with pop-out function and places 60mm to wall when retracted with quick lock mechanism. Lateral shift brackets and built-in screen level adjustment for seamless display alignment and level. It is the perfect solution for public and commercial displays with anti-theft design (require for a padlock). To customize multiple screen display solution, please use with connect plates.

VESA : 200 x 200 , 300 x 300 , 400 x 200 , 400 x 400 , 600 x 400 mm

Tilt : +/- 3 degrees

Size : Most 37 - 70 Inches LED TV , Screens

Metal Sheet Thickness:Wall Plate THK=2mm cold-rolled sheet,

Bracket Arm THK=2.5mm cold-rolled sheet

Surface Finish:Powder Coating

Color:Fine Texture Black

Bracket Arm Profile:68~215mm
